FFU Fan Filter Unit 615×615 Cleanroom Ceiling FFU — Inner Rotor Motor, Ø400 Aluminum Impeller, H14
FFU Fan Filter Unit 615×615 Cleanroom Ceiling FFU — Inner Rotor Motor, Ø400 Aluminum Impeller, H14
SKU: 1002-FFU-DC-615x615
Compact 615×615 fan filter unit for 600×600 cleanroom ceiling systems. Inner rotor motor with Ø400 aluminum impeller, 0.45 m/s ±20% face velocity, 500 m³/h airflow, 180 W, 58–65 dB. 1.0 mm Al-Zn coated steel housing, 218 mm high, 610×610×69 mm H14 HEPA filter, 3-speed switch on the unit. Made by Senter Motor.
- Fan Type Inner Rotor DC Motor, Ø400 Aluminum Impeller
- Air Velocity 0.45 m/s ±20%
- Air Volume 500 m³/h
- Noise 58–65 dB
- HEPA Filter Size 610 × 610 × 69 mm
- Filter Grade H14
Product Description
The Senter 615×615 FFU is a compact fan filter unit for 600×600 cleanroom ceiling systems. An inner rotor motor with a Ø400 mm aluminum impeller pushes air through a 610×610×69 mm H14 HEPA filter, delivering 500 m³/h at 0.45 m/s ±20% face velocity with 180 W power.
The housing is 1.0 mm Al-Zn coated steel, thicker than on the larger Senter FFUs, and only 218 mm high. A 3-speed switch and a main power rocker switch are built into the unit, so it runs without an external controller. This makes it a good fit for small cleanrooms, clean booths, laboratories and local clean zones over workstations.
Features
- Inner rotor motor with Ø400 mm aluminum impeller
- H14 HEPA filter, 610 × 610 × 69 mm
- 1.0 mm Al-Zn coated steel housing
- 218 mm overall height
- Built-in 3-speed switch and main power rocker switch
- Runs stand-alone, no external controller needed
- Designed for 600 × 600 cleanroom ceiling systems
Applications
- Small cleanrooms and clean booths
- Local clean zones over workstations and assembly benches
- Electronics assembly
- Pharmaceutical and biological laboratories
- Food processing clean areas
- Medical device production
Control & Operation
Switch the unit on with the main power rocker switch and select one of three speeds with the speed switch. No external controller or wiring to a control system is needed. For projects that need central control, a group-control version can be quoted.
Test Conditions
Air velocity, airflow and noise on this page are nominal factory values. Measuring points, test conditions and test records are available on request.
Drawings & Downloads

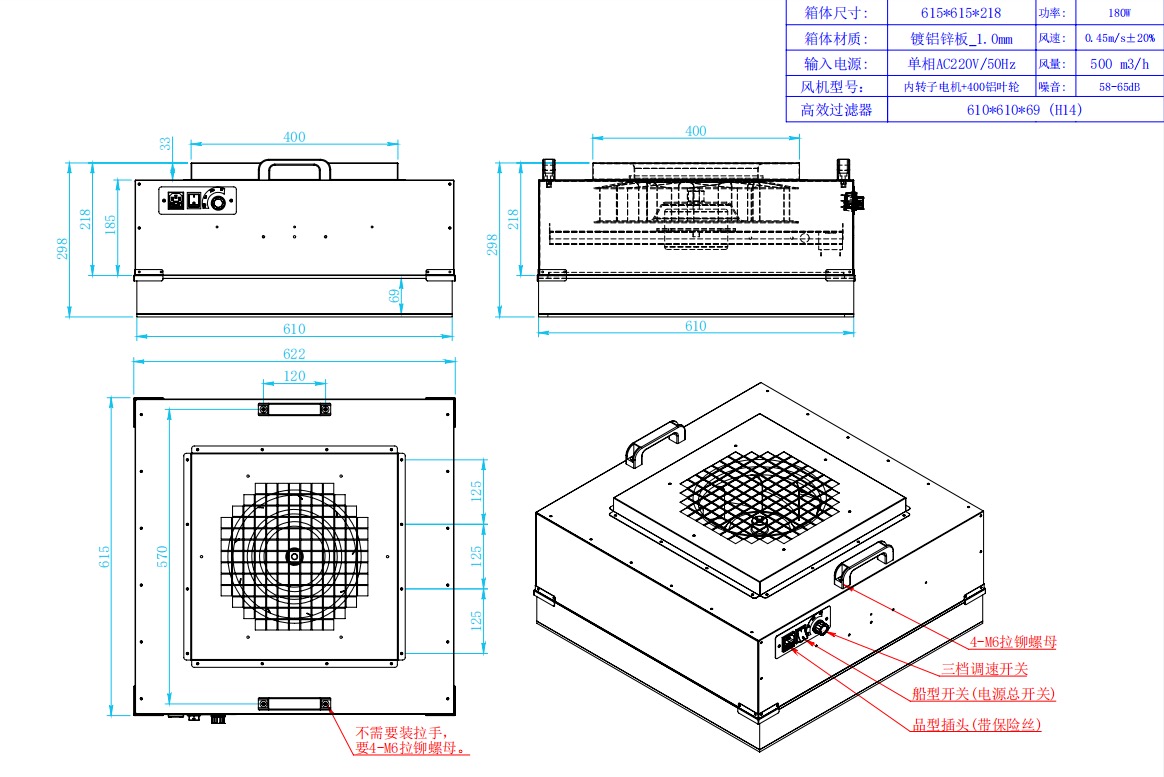

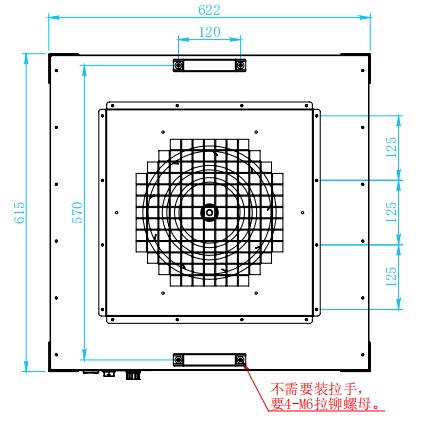

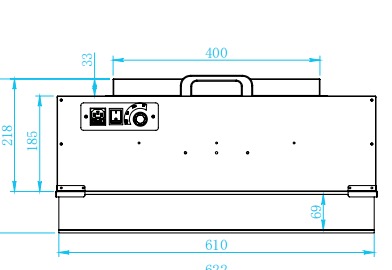

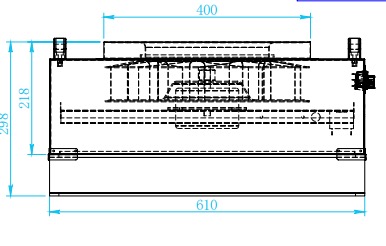

The CAD drawing below shows the overall dimensions. A PDF drawing with full dimensions is available on request.
Customization Options
Custom orders are available for projects:
- Non-standard sizes, including inch-grid sizes
- Other filter grades, such as H13
- Other housing materials
- Group control version
- Other supply voltages
Packaging
Each unit is packed in a PE bag and shipped on a wooden pallet.
Product Gallery
| Parameter | Value |
|---|---|
| Model | 1002-FFU-DC-615x615 |
| Housing Size | 615 × 615 × 218 mm |
| Housing Material | Al-Zn Coated Steel 1.0 mm |
| Power Supply | Single Phase AC 220 V / 50 Hz |
| Power | 180 W |
| Fan Type | Inner Rotor DC Motor, Ø400 Aluminum Impeller |
| Air Velocity | 0.45 m/s ±20% |
| Air Volume | 500 m³/h |
| Noise | 58–65 dB |
| HEPA Filter Size | 610 × 610 × 69 mm |
| Filter Grade | H14 |
| Control | 3-speed switch + main power rocker switch |
| Packaging | PE bag + wooden pallet |
Air velocity, airflow and noise are nominal factory values; test conditions available on request.
Product Description
The Senter 615×615 FFU is a compact fan filter unit for 600×600 cleanroom ceiling systems. An inner rotor motor with a Ø400 mm aluminum impeller pushes air through a 610×610×69 mm H14 HEPA filter, delivering 500 m³/h at 0.45 m/s ±20% face velocity with 180 W power.
The housing is 1.0 mm Al-Zn coated steel, thicker than on the larger Senter FFUs, and only 218 mm high. A 3-speed switch and a main power rocker switch are built into the unit, so it runs without an external controller. This makes it a good fit for small cleanrooms, clean booths, laboratories and local clean zones over workstations.
Features
- Inner rotor motor with Ø400 mm aluminum impeller
- H14 HEPA filter, 610 × 610 × 69 mm
- 1.0 mm Al-Zn coated steel housing
- 218 mm overall height
- Built-in 3-speed switch and main power rocker switch
- Runs stand-alone, no external controller needed
- Designed for 600 × 600 cleanroom ceiling systems
Applications
- Small cleanrooms and clean booths
- Local clean zones over workstations and assembly benches
- Electronics assembly
- Pharmaceutical and biological laboratories
- Food processing clean areas
- Medical device production
Control & Operation
Switch the unit on with the main power rocker switch and select one of three speeds with the speed switch. No external controller or wiring to a control system is needed. For projects that need central control, a group-control version can be quoted.
Test Conditions
Air velocity, airflow and noise on this page are nominal factory values. Measuring points, test conditions and test records are available on request.
Drawings & Downloads
The CAD drawing below shows the overall dimensions. A PDF drawing with full dimensions is available on request.
Customization Options
Custom orders are available for projects:
- Non-standard sizes, including inch-grid sizes
- Other filter grades, such as H13
- Other housing materials
- Group control version
- Other supply voltages
Packaging
Each unit is packed in a PE bag and shipped on a wooden pallet.
Product Gallery
| Parameter | Value |
|---|---|
| Model | 1002-FFU-DC-615x615 |
| Housing Size | 615 × 615 × 218 mm |
| Housing Material | Al-Zn Coated Steel 1.0 mm |
| Power Supply | Single Phase AC 220 V / 50 Hz |
| Power | 180 W |
| Fan Type | Inner Rotor DC Motor, Ø400 Aluminum Impeller |
| Air Velocity | 0.45 m/s ±20% |
| Air Volume | 500 m³/h |
| Noise | 58–65 dB |
| HEPA Filter Size | 610 × 610 × 69 mm |
| Filter Grade | H14 |
| Control | 3-speed switch + main power rocker switch |
| Packaging | PE bag + wooden pallet |
Air velocity, airflow and noise are nominal factory values; test conditions available on request.
Related
FFU Fan Filter Unit 1175×875 DC Cleanroom Ceiling FFU
1175×875 large DC FFU adopts 400mm external rotor fan, dual filtration, 0.8mm aluminum-zinc coated housing and group control module. 1500m³/h high airflow for large cleanroom, semiconductor, pharmaceutical and food clean area projects.
FFU Fan Filter Unit 1175×1175 Cleanroom Ceiling FFU with DC External Rotor 400 Fan
1175×1175 large DC FFU compatible with 1200×1200 cleanroom ceiling grid. Equipped with DC external rotor 400 fan, airflow ≥2000m³/h, 0.8mm aluminized zinc housing for semiconductor, pharmaceutical & food large clean areas.
FFU Fan Filter Unit 1175×575 Cleanroom Ceiling FFU with DC 310 External Rotor Fan
This FFU (Fan Filter Unit) is an air purification device designed for cleanroom ceiling systems. It integrates a fan and a high-efficiency filter to provide stable laminar airflow. Air is drawn in by the fan, filtered through a high-efficiency filter, and then supplied evenly into the cleanroom.The unit is equipped with a DC 310 external rotor fan, ensuring stable operation, low noise and uniform airflow. The housing is made of 0.8 mm galvanized steel, providing durable and reliable structure. It is widely used in electronics, semiconductor manufacturing, pharmaceutical workshops and laboratories.
Frequently Asked Questions
Small cleanrooms, clean booths, laboratories and local clean zones over workstations. It uses a 610 × 610 × 69 mm H14 HEPA filter and delivers 500 m³/h at 0.45 m/s.
With the 3-speed switch on the unit. A main power rocker switch turns it on and off. No external controller is needed.
The standard unit is controlled locally by its own switches. A group-control version is available as a custom order; tell us the number of units and zones.
A 610 × 610 × 69 mm H14 HEPA filter as standard. Other grades, such as H13, are available on request.
218 mm overall. Check the space above the ceiling against the CAD drawing before ordering.
